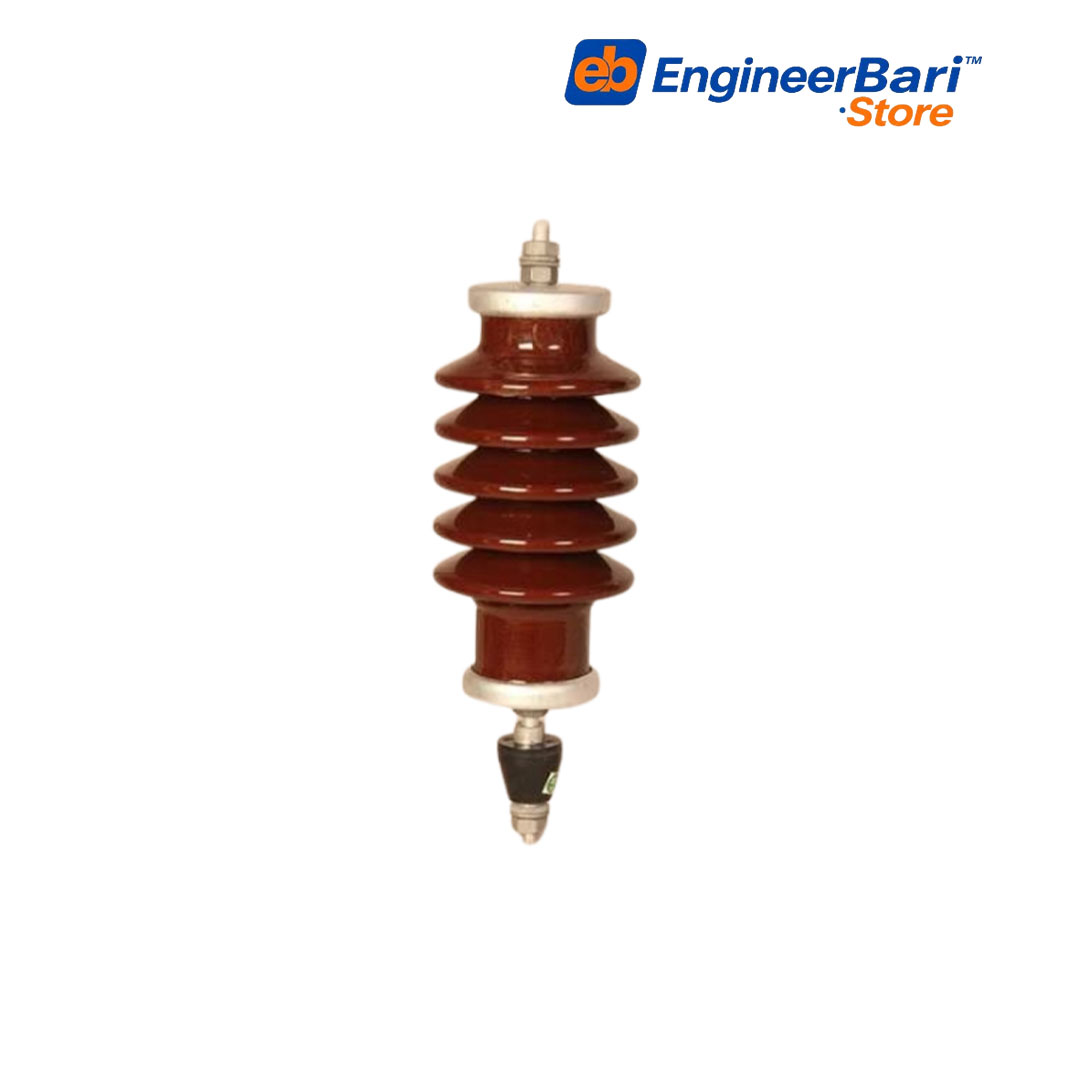

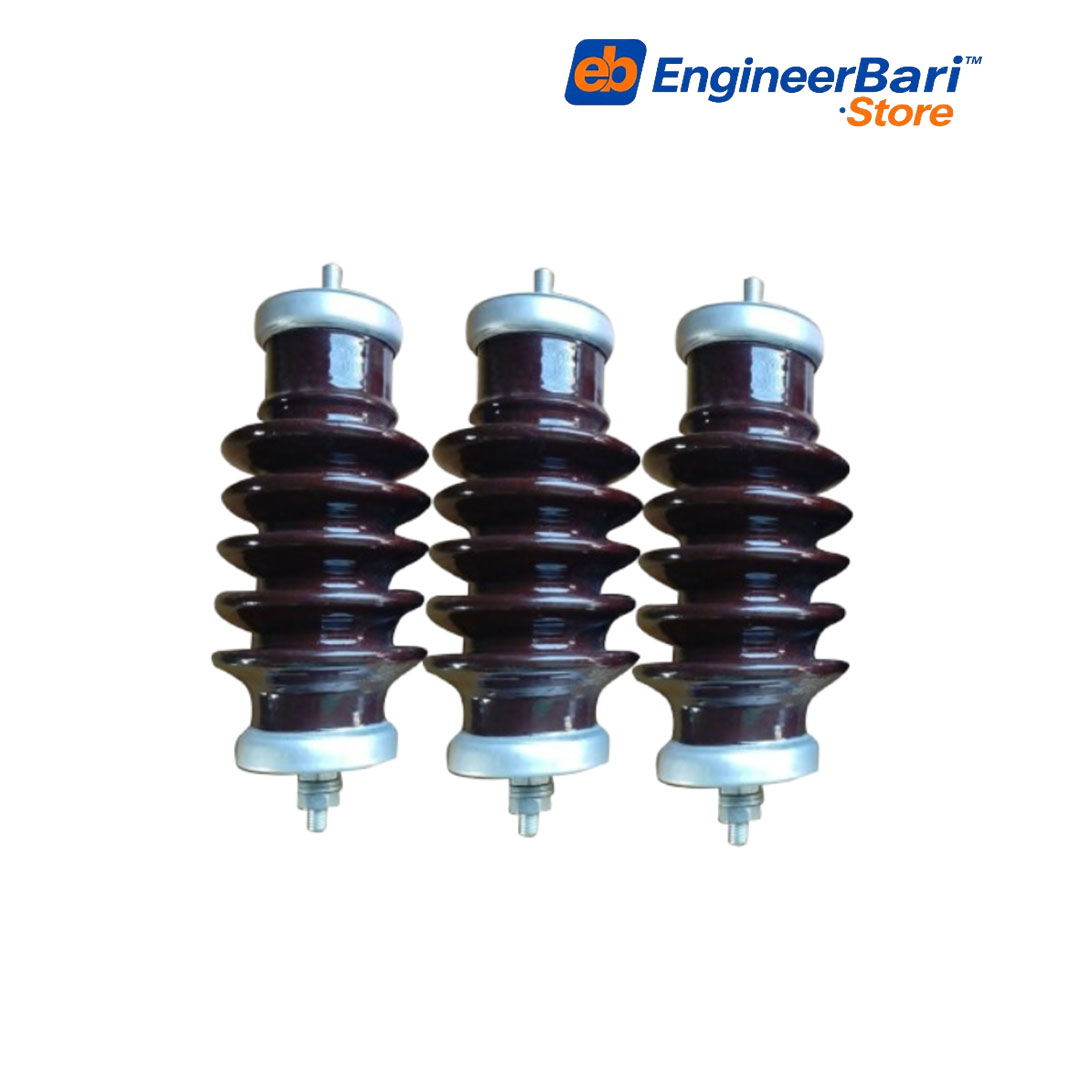

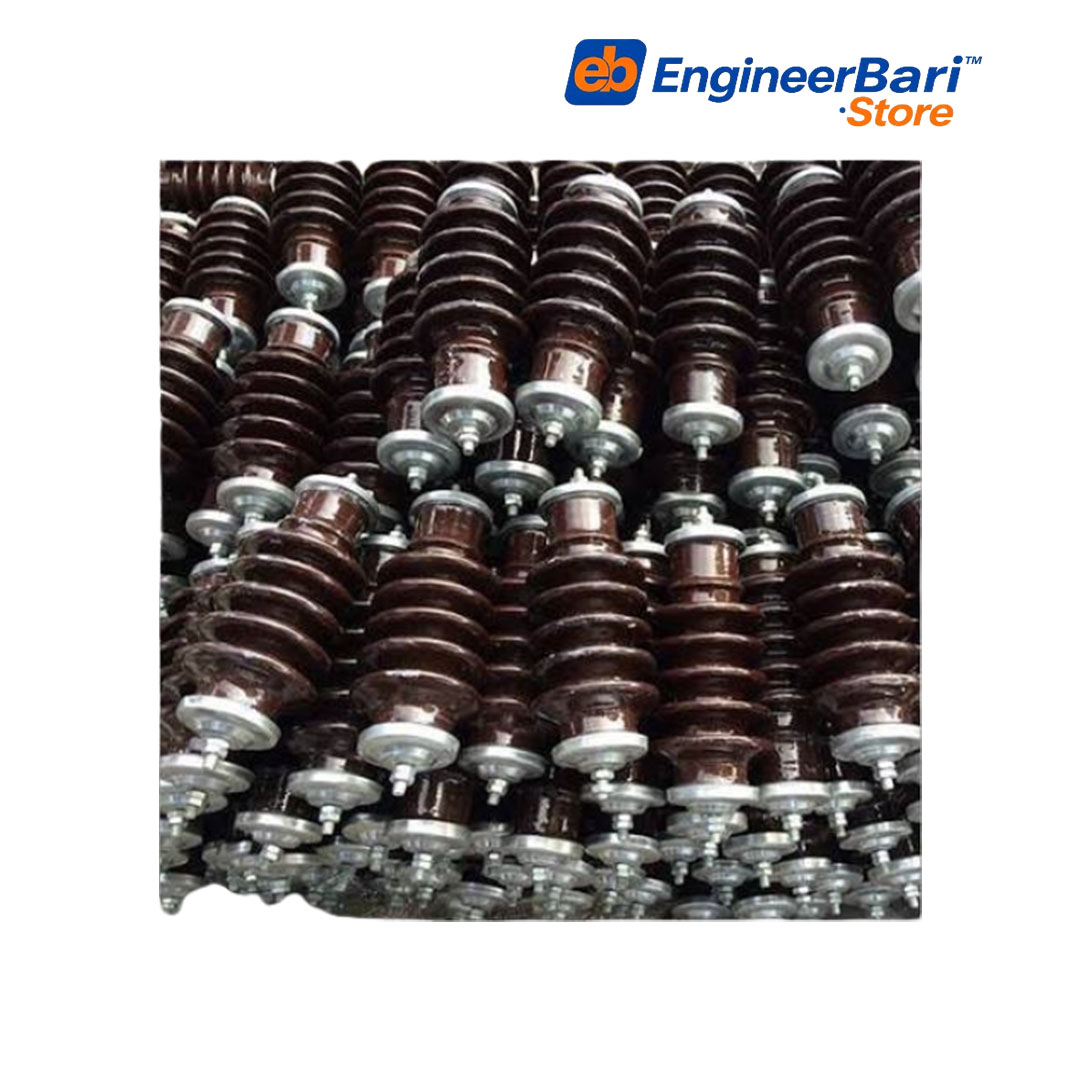

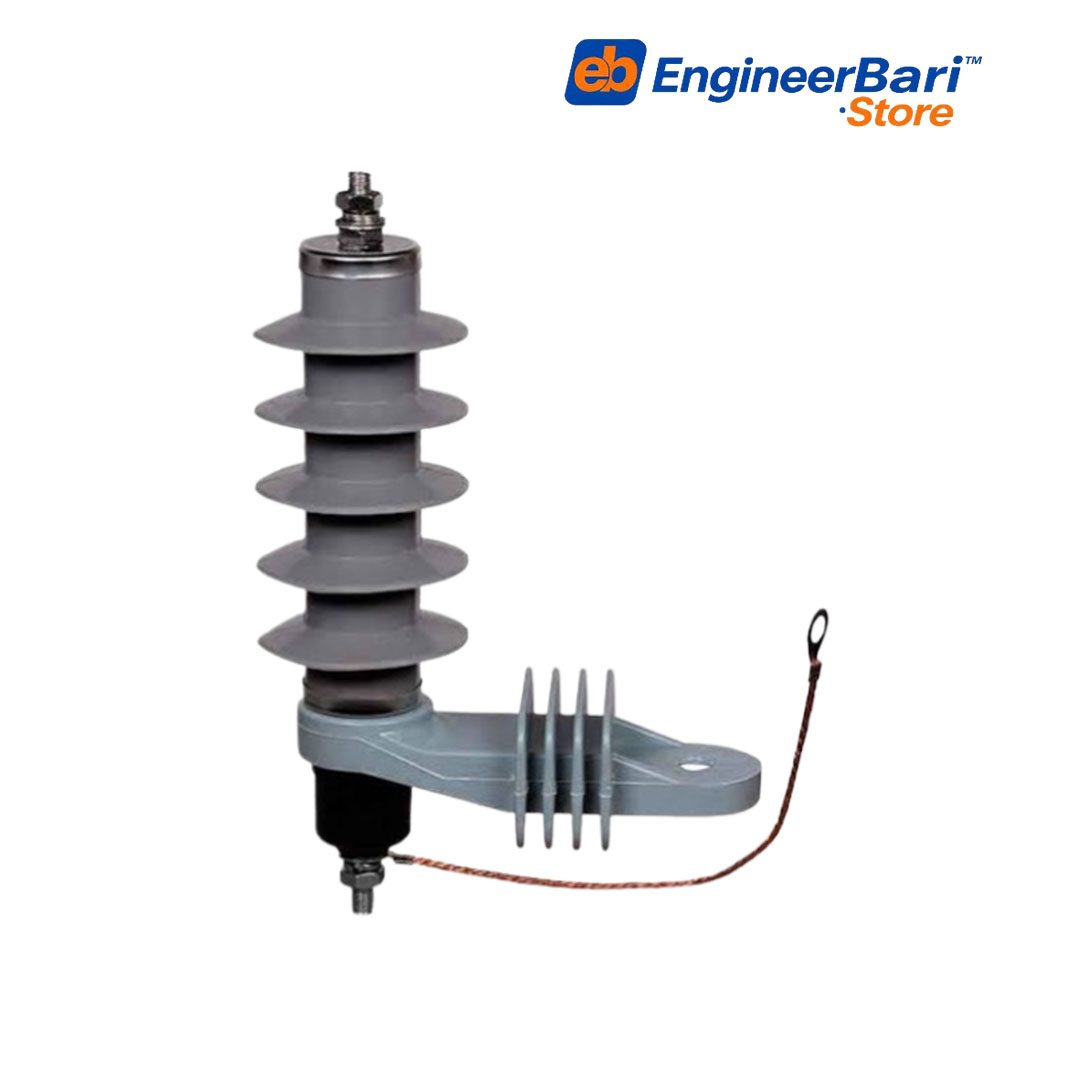

11kv Lighting Arrestor
Latest Price
Call for Latest Price
Get best price & special offers
Brand: N/A
Code: EB-20260064
SKU: SKU1782708596
Stock: 150 in stock
Product Description
The 11kV Polymer Lightning Arrester is designed to protect medium-voltage electrical systems from lightning strikes and switching overvoltages. It provides reliable surge protection by safely diverting transient overvoltages to ground, minimizing the risk of damage to transformers, switchgear, overhead distribution lines, and other power system equipment.
Manufactured using high-quality Metal Oxide Varistor (MOV) technology with a weather-resistant silicone polymer housing, the arrester offers excellent insulation performance, high energy absorption capability, and long service life in harsh outdoor environments.
Ideal for utility substations, distribution networks, industrial power systems, renewable energy installations, and electrical infrastructure projects.
Key Features
- Gapless Metal Oxide (ZnO) technology
- Silicone polymer weather-resistant housing
- High energy absorption capability
- Excellent pollution and moisture resistance
- UV-resistant and hydrophobic insulation
- Maintenance-free operation
- Lightweight and easy installation
- High mechanical strength
- Reliable protection against lightning and switching surges
- Long operational life
Applications
- 11kV Distribution Network
- Distribution Substations
- Pole Mounted Transformers
- Power Transformers
- Ring Main Units (RMU)
- Medium Voltage Switchgear
- Industrial Plants
- Renewable Energy Systems
- Utility Power Networks
- Electrical Infrastructure Projects
Technical Specifications
| Product Name | 11kV Polymer Lightning Arrester |
|---|---|
| Brand | EngineerBari |
| Model | EB-LA-11 |
| Type | Metal Oxide Gapless Surge Arrester |
| System Voltage | 11 kV |
| Rated Voltage | 9 kV |
| Maximum Continuous Operating Voltage (MCOV) | 7.65 kV |
| Nominal Discharge Current | 10 kA |
| High Current Impulse | 100 kA (4/10 μs) |
| Line Discharge Class | Class 2 |
| Housing Material | Silicone Polymer |
| Core Material | Zinc Oxide (ZnO) Metal Oxide Varistor |
| Frequency | 50/60 Hz |
| Leakage Distance | ≥ 320 mm |
| Protection Level | As per IEC 60099-4 |
| Short Circuit Withstand | Up to 20 kA |
| Operating Temperature | -40°C to +55°C |
| Altitude | Up to 2000 m |
| Mounting | Vertical |
| Terminal Material | Hot Dip Galvanized Steel |
| Standard | IEC 60099-4 |
| Color | Brown |
| Country Of Origin | China / India (Depending on Manufacturer) |
| Applications | 11kV Distribution Lines, Power Transformers, Ring Main Units (RMU), Pole Mounted Transformers, Switchgear Panels, Distribution Substations, Industrial Power Systems |
