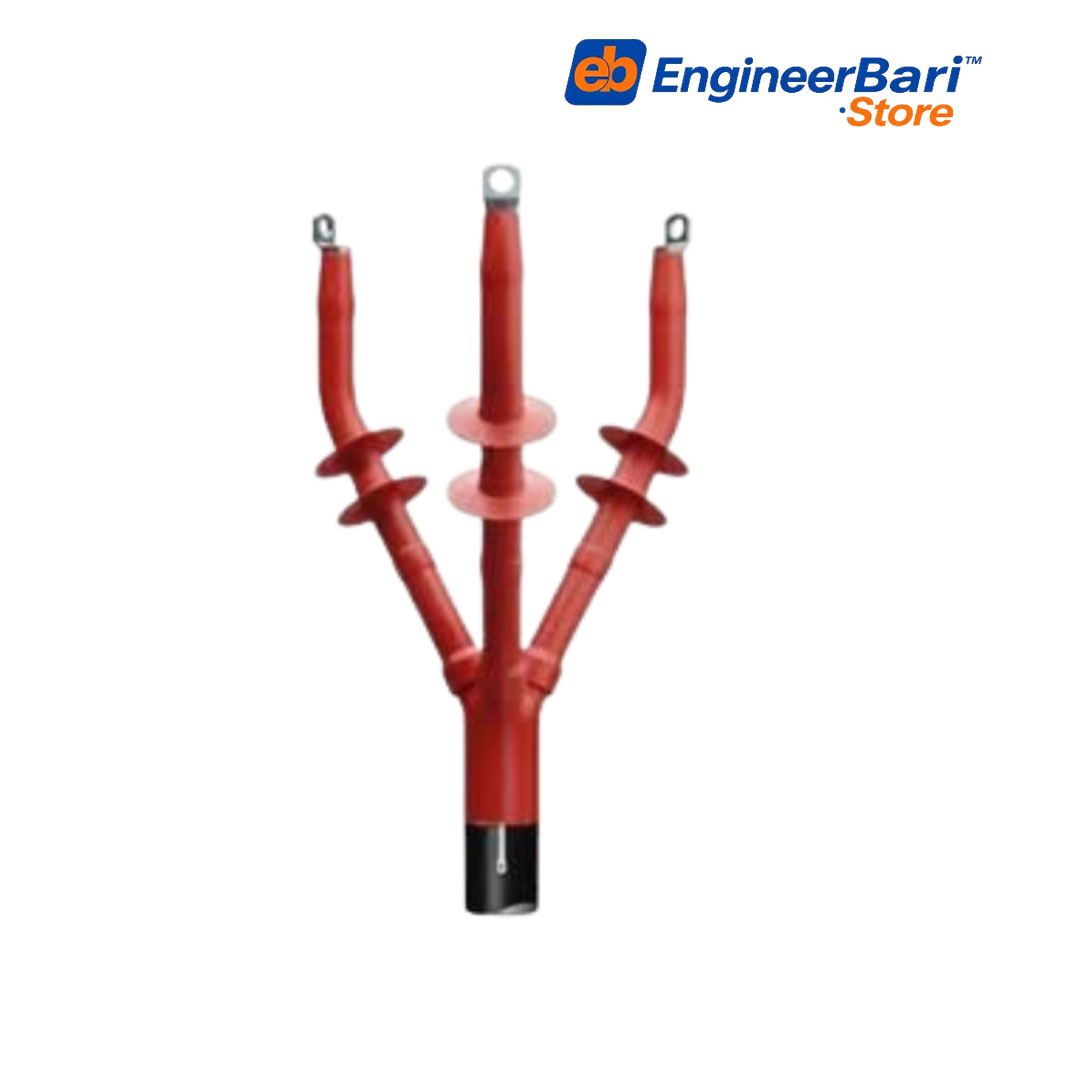

11kV XLPE Cable Termination Kit (Indoor / Outdoor)
Latest Price
Call for Latest Price
Get best price & special offers
Brand: N/A
Code: EB-20260067
SKU: SKU1782709386
Stock: 100 in stock
Product Description
The 11kV XLPE Cable Termination Kit is designed for the safe and reliable termination of medium-voltage XLPE insulated power cables in indoor and outdoor applications. Manufactured using high-quality heat shrink technology, the kit provides excellent electrical insulation, environmental sealing, stress control, and mechanical protection, ensuring long-term performance in demanding operating conditions.
The termination kit is suitable for connecting 11kV XLPE cables to switchgear, transformers, RMUs, substations, and other medium-voltage electrical equipment. It offers superior resistance to moisture, UV radiation, tracking, corrosion, and environmental contamination.
Ideal for power utilities, EPC contractors, industrial plants, renewable energy projects, and electrical distribution systems.
Key Features
- Heat shrink technology
- Excellent electrical insulation
- High dielectric strength
- Superior moisture sealing
- UV and weather resistant
- Anti-tracking and erosion resistant
- Easy installation
- Long service life
- Maintenance-free operation
- Suitable for indoor and outdoor applications
- High mechanical strength
- Reliable stress control system
| Model | Voltage | Cable Type | Cable Size |
|---|---|---|---|
| EB-CTK-11-25 | 11kV | 3 Core | 25–50 mm² |
| EB-CTK-11-70 | 11kV | 3 Core | 70–120 mm² |
| EB-CTK-11-185 | 11kV | 3 Core | 150–185 mm² |
| EB-CTK-11-300 | 11kV | 3 Core | 240–300 mm² |
| EB-CTK-11-400 | 11kV | 3 Core | 400 mm² |

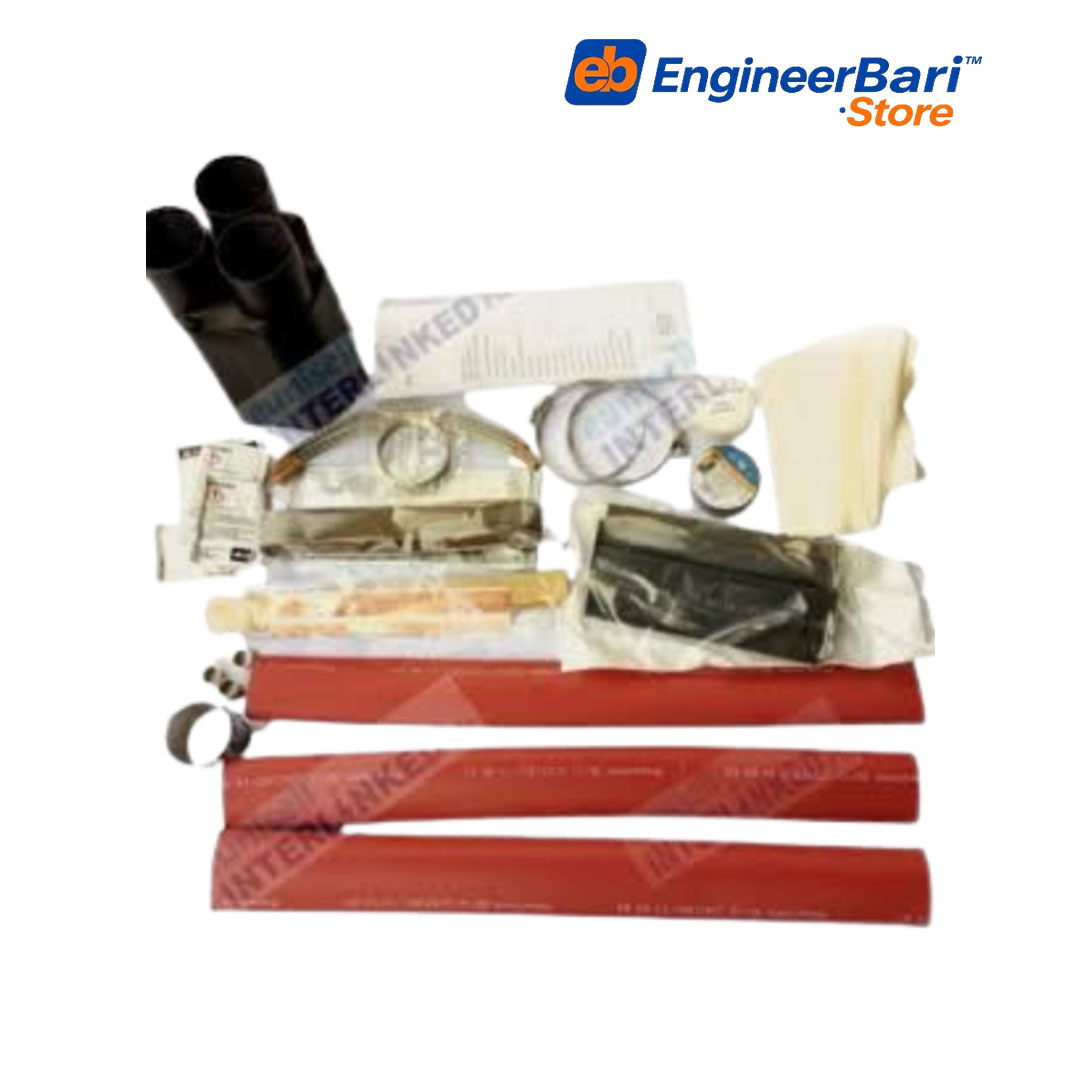

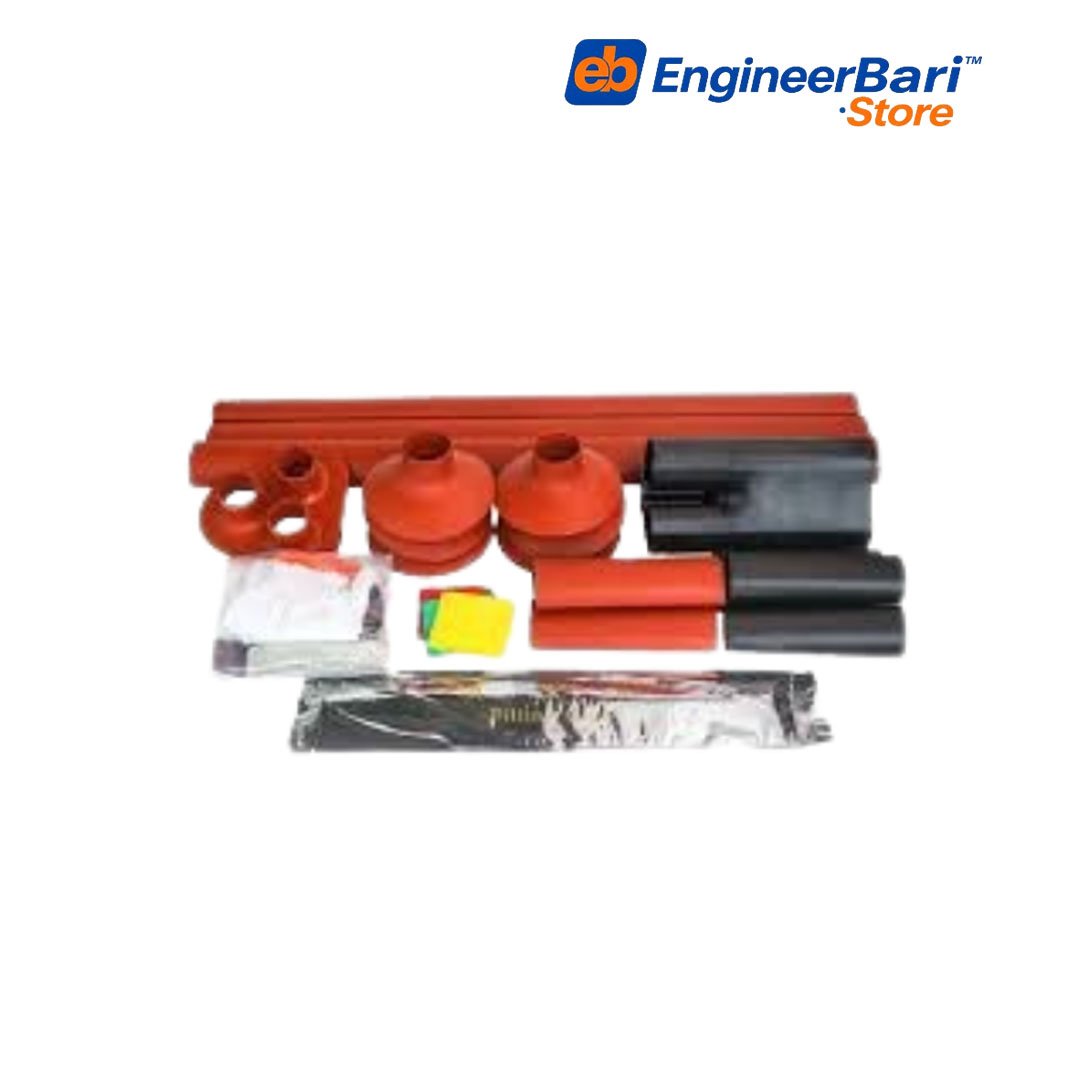

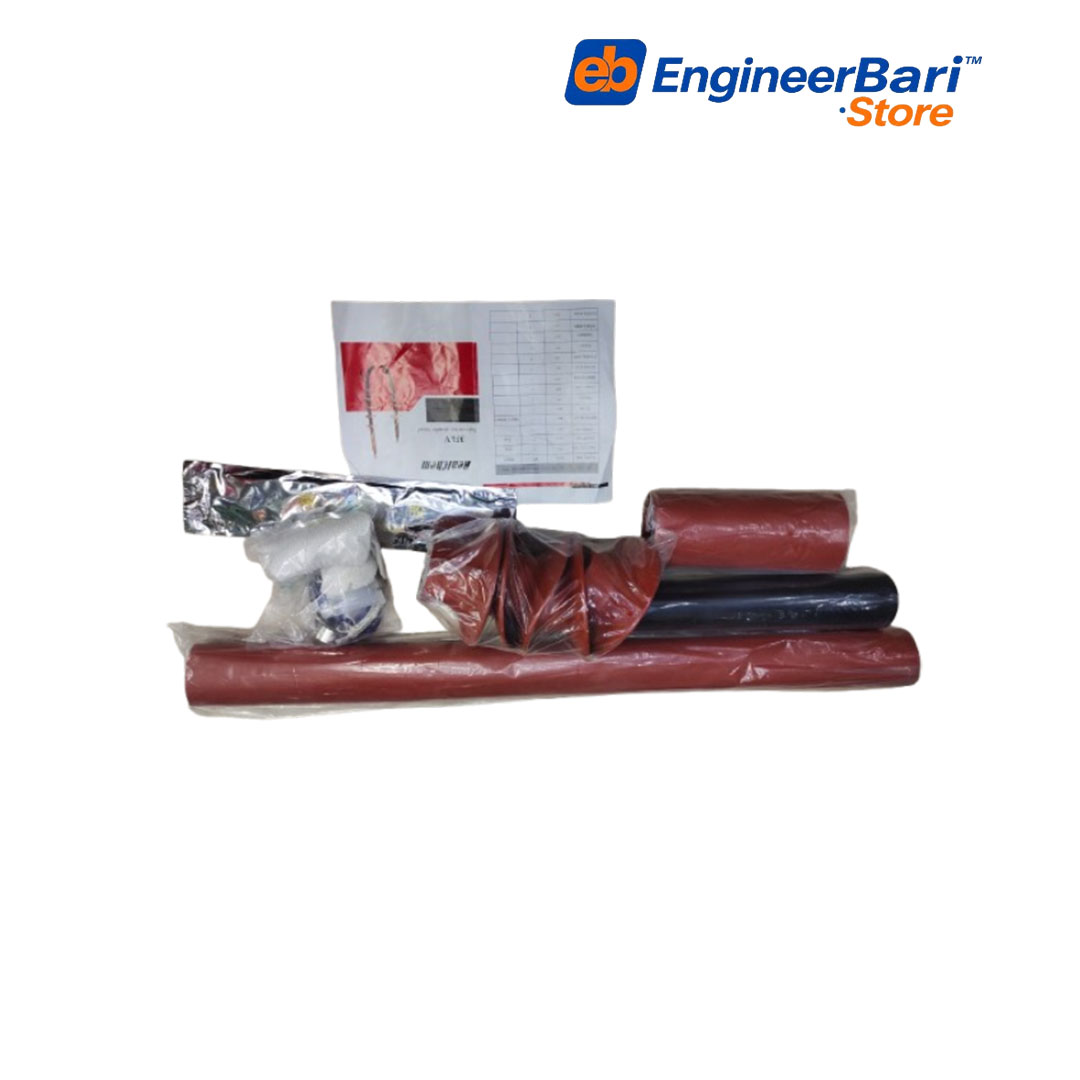

Package Includes
- Stress Control Tubes
- Heat Shrink Insulation Tubes
- Anti-Tracking Tubes
- Heat Shrink Breakout
- Red Sealing Tubes
- Mastic Sealant
- Constant Force Springs
- Installation Accessories
- Installation Manual
Applications
- 11kV Distribution Networks
- Power Transformers
- Ring Main Units (RMU)
- Medium Voltage Switchgear
- Distribution Substations
- Industrial Plants
- Solar Power Plants
- Wind Power Projects
- Electrical Infrastructure
- Utility Power Networks
Technical Specifications
| Product Name | 11kV XLPE Cable Termination Kit |
|---|---|
| Brand | EngineerBari |
| Model | EB-CTK-11 |
| Type | Heat Shrink Cable Termination Kit |
| Voltage Class | 6.35/11 kV |
| Applicable Cable | Single Core / 3 Core XLPE Insulated Power Cable |
| Installation Type | Indoor / Outdoor |
| Technology | Heat Shrink |
| Insulation Material | Cross-Linked Polyolefin |
| Stress Control | Stress Control Tube |
| Insulation Tube | Heat Shrink Insulation Tube |
| Anti-Tracking Tube | Weather Resistant |
| Breakout | Heat Shrink Breakout |
| Sealing Method | Heat Shrink Adhesive Sealing |
| Conductor Material | Copper / Aluminum Compatible |
| Cable Size | 25 mm² – 400 mm² (Model Dependent) |
| Frequency | 50/60 Hz |
| Operating Temperature | -40°C to +90°C |
| Short Circuit Temperature | Up to 250°C |
| UV Resistance | Excellent |
| Water Resistance | Excellent |
| Chemical Resistance | Good |
| Flame Retardant | Yes |
| Standard | IEC 60502-4, IEC 60840 |
| Color | Red / Black |
| Country Of Origin | China / India (Depending on Manufacturer) |
| Applications | Power Transformers, Switchgear, RMU, Distribution Substations, Industrial Plants, Renewable Energy, Medium Voltage Power Distribution |
No operational manual available.
