33kV XLPE Cable Termination Kit (Indoor / Outdoor)
Latest Price
Call for Latest Price
Get best price & special offers
Brand: N/A
Code: EB-20260068
SKU: SKU1782709453
Stock: 12 in stock
Product Description
The 33kV XLPE Cable Termination Kit is a high-performance medium-voltage cable accessory designed for the safe and reliable termination of 33kV XLPE insulated power cables. Utilizing advanced heat shrink technology, the kit provides excellent electrical insulation, stress control, environmental sealing, and mechanical protection for long-term operation in demanding power distribution systems.
Engineered for both indoor and outdoor installations, the termination kit ensures superior resistance against moisture, UV radiation, pollution, tracking, and harsh environmental conditions. It is widely used in substations, switchgear, transformers, Ring Main Units (RMU), industrial plants, renewable energy projects, and utility distribution networks.
Manufactured in accordance with international standards, the 33kV XLPE Cable Termination Kit delivers dependable performance, easy installation, and maintenance-free operation throughout its service life.
Key Features
- Heat shrink technology
- Suitable for indoor and outdoor installation
- Excellent dielectric insulation
- Superior stress control system
- Anti-tracking and erosion resistant
- UV and weather resistant
- Moisture-proof sealing
- High mechanical strength
- Easy and fast installation
- Long service life
- Maintenance-free operation
- IEC compliant design
Available Models
| Model | Voltage Class | Cable Type | Cable Size |
|---|---|---|---|
| EB-CTK-33-70 | 33kV | Single / 3 Core | 50–70 mm² |
| EB-CTK-33-120 | 33kV | Single / 3 Core | 95–120 mm² |
| EB-CTK-33-185 | 33kV | Single / 3 Core | 150–185 mm² |
| EB-CTK-33-300 | 33kV | Single / 3 Core | 240–300 mm² |
| EB-CTK-33-630 | 33kV | Single / 3 Core | 400–630 mm² |

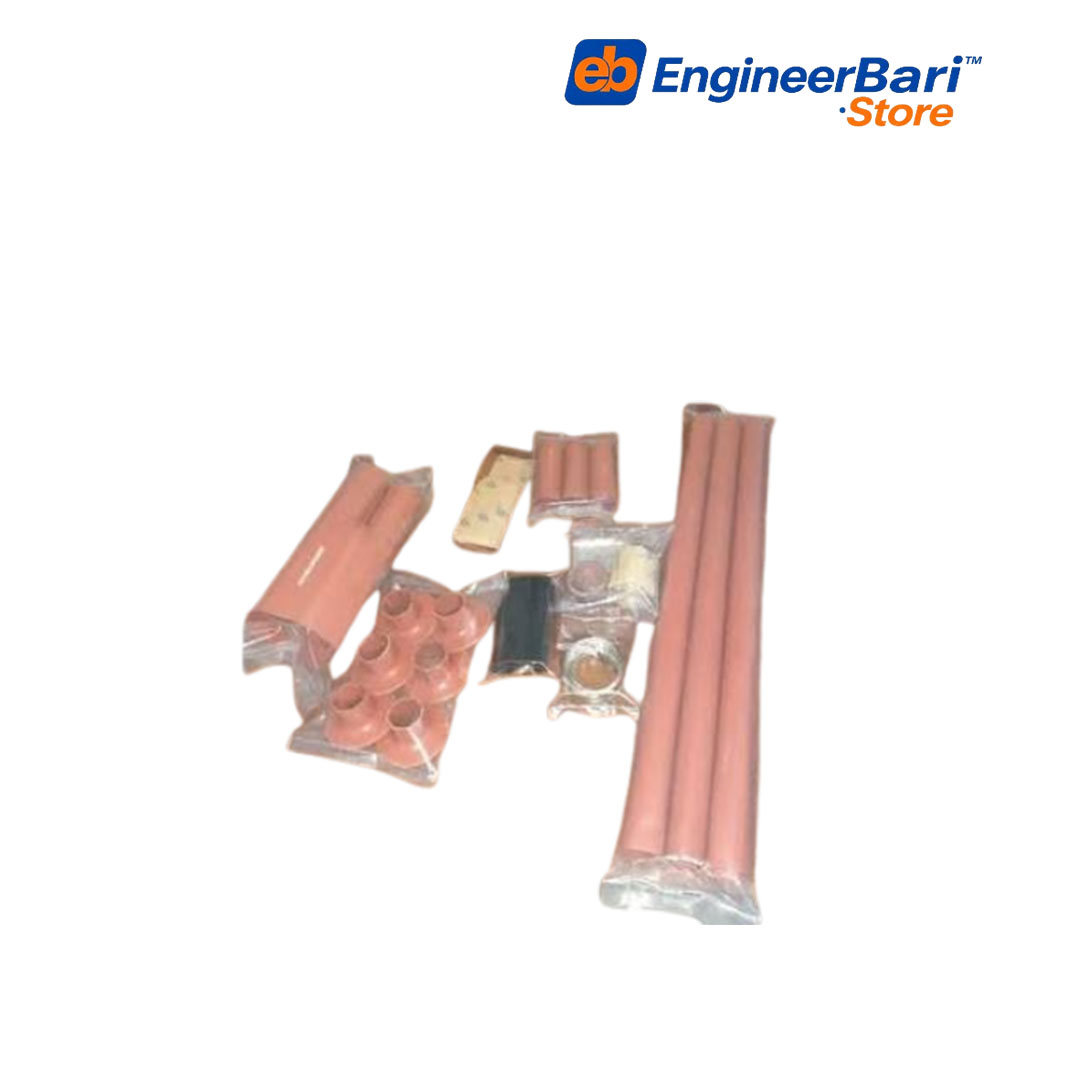

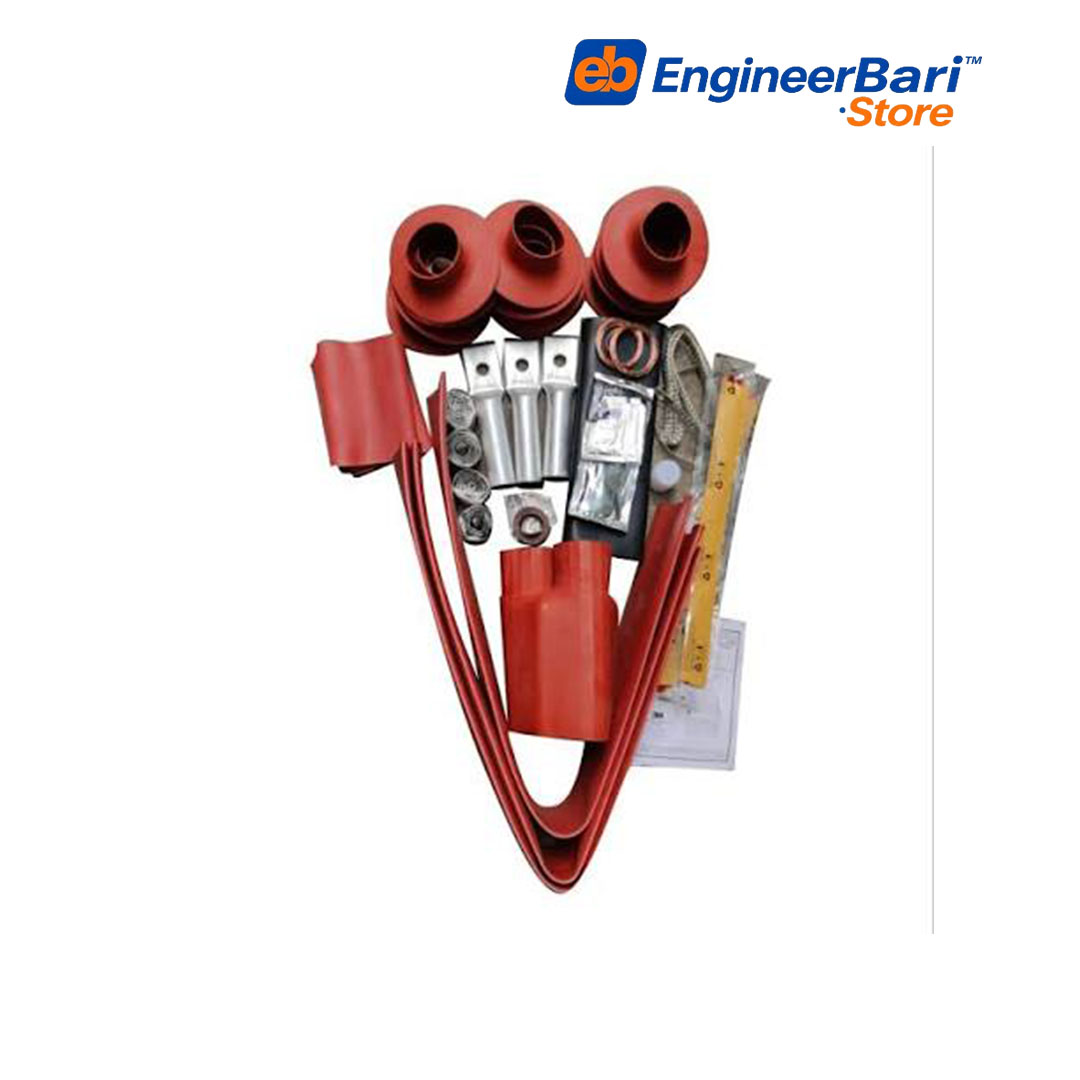

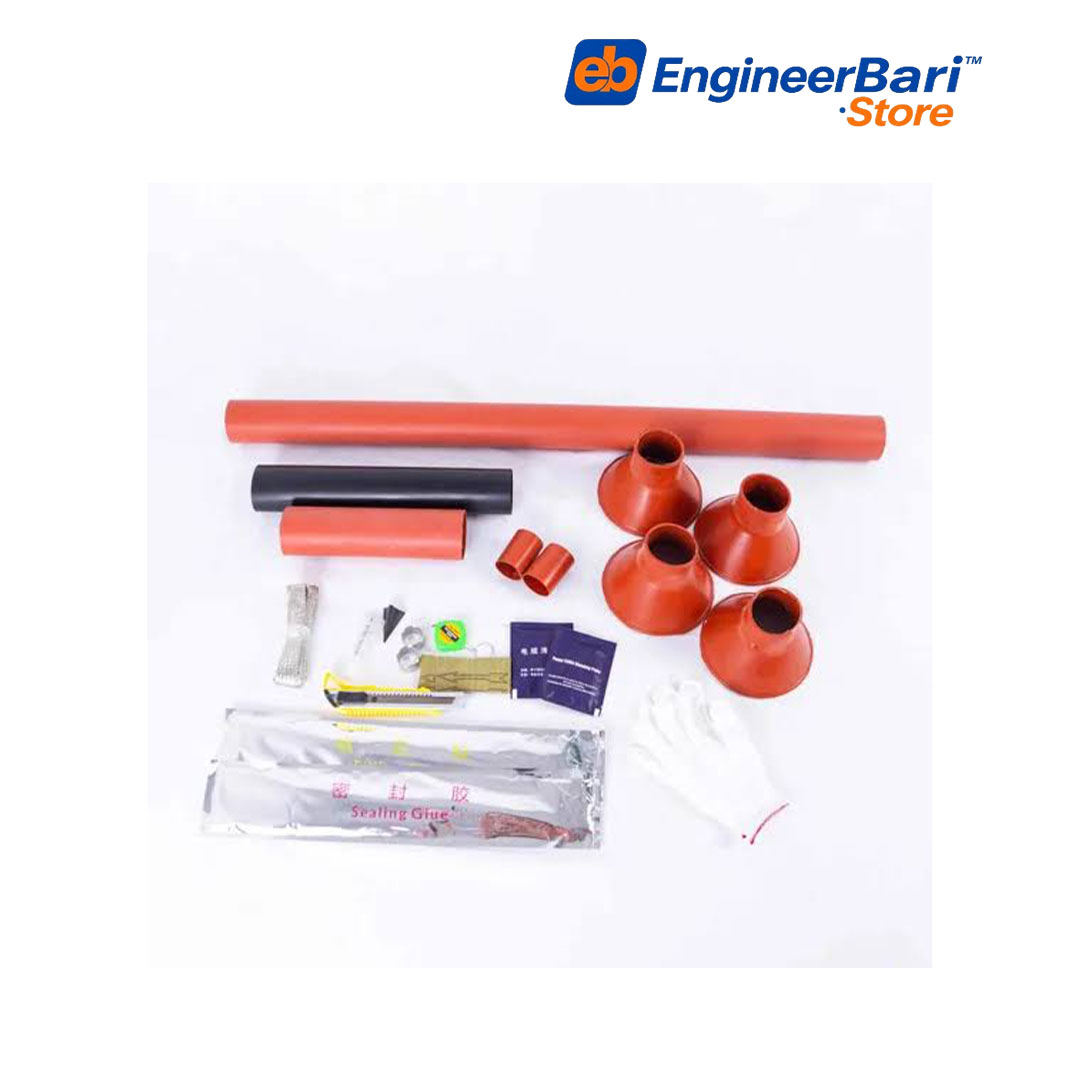

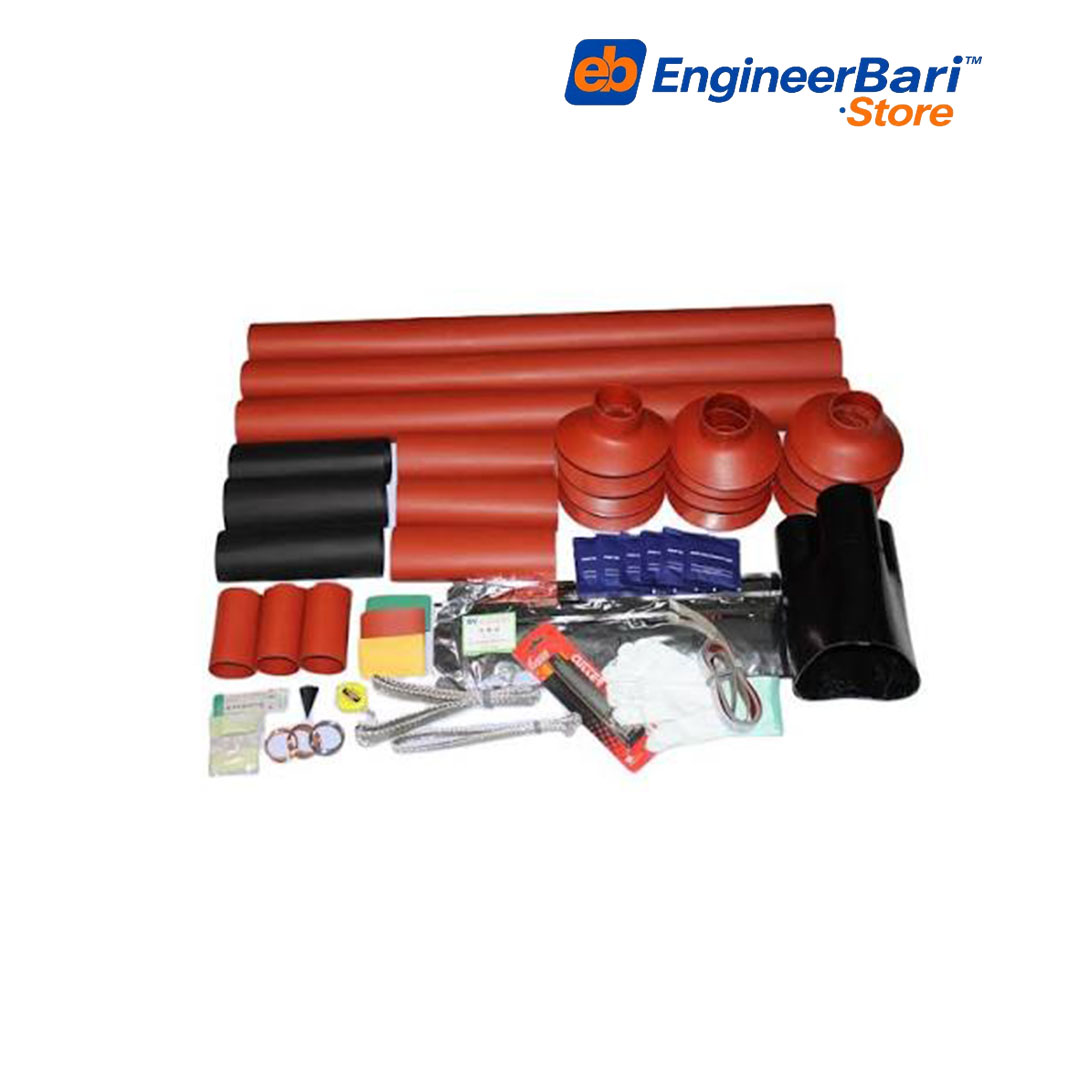

Package Includes
- Heat Shrink Stress Control Tubes
- Heat Shrink Insulation Tubes
- Anti-Tracking Tubes
- Heat Shrink Breakout
- Rain Sheds (Outdoor Kit)
- Mastic Sealant
- Constant Force Springs
- Copper Mesh / Earth Braid (Model Dependent)
- Installation Accessories
- Installation Manual
Applications
- 33kV Distribution Substations
- Power Transformers
- GIS Switchgear
- AIS Switchgear
- Ring Main Units (RMU)
- Industrial Power Plants
- Renewable Energy Projects
- Wind Farms
- Solar Power Plants
- Utility Distribution Networks
- Electrical Infrastructure Projects
Technical Specifications
| Product Name | 33kV XLPE Cable Termination Kit |
|---|---|
| Brand | EngineerBari |
| Model | EB-CTK-33 |
| Type | Heat Shrink Cable Termination Kit |
| Voltage Class | 19/33 kV |
| Installation Type | Indoor / Outdoor |
| Cable Type | Single Core / 3 Core XLPE Insulated Power Cable |
| Technology | Heat Shrink |
| Insulation Material | Cross-Linked Polyolefin |
| Stress Control | Heat Shrink Stress Control Tube |
| Insulation Tube | Heat Shrink Insulation Tube |
| Anti-Tracking Tube | Weather Resistant Heat Shrink Tube |
| Breakout | Heat Shrink Breakout |
| Sealing Method | Adhesive Lined Heat Shrink |
| Conductor Material | Copper / Aluminum Compatible |
| Cable Size | 50 mm² – 630 mm² (Model Dependent) |
| Frequency | 50/60 Hz |
| Rated Insulation Level | 33 kV |
| Operating Temperature | -40°C to +90°C |
| Maximum Short Circuit Temperature | 250°C |
| UV Resistance | Excellent |
| Water Resistance | Excellent |
| Chemical Resistance | Excellent |
| Flame Retardant | Yes |
| Pollution Resistance | High |
| Standard | IEC 60502-4, IEC 60840 |
| Color | Red / Black |
| Country Of Origin | China / India (Depending on Manufacturer) |
| Applications | 33kV Power Transformers, GIS Switchgear, AIS Switchgear, Ring Main Units (RMU), Distribution Substations, Industrial Plants, Renewable Energy Projects, Utility Networks |
No operational manual available.
