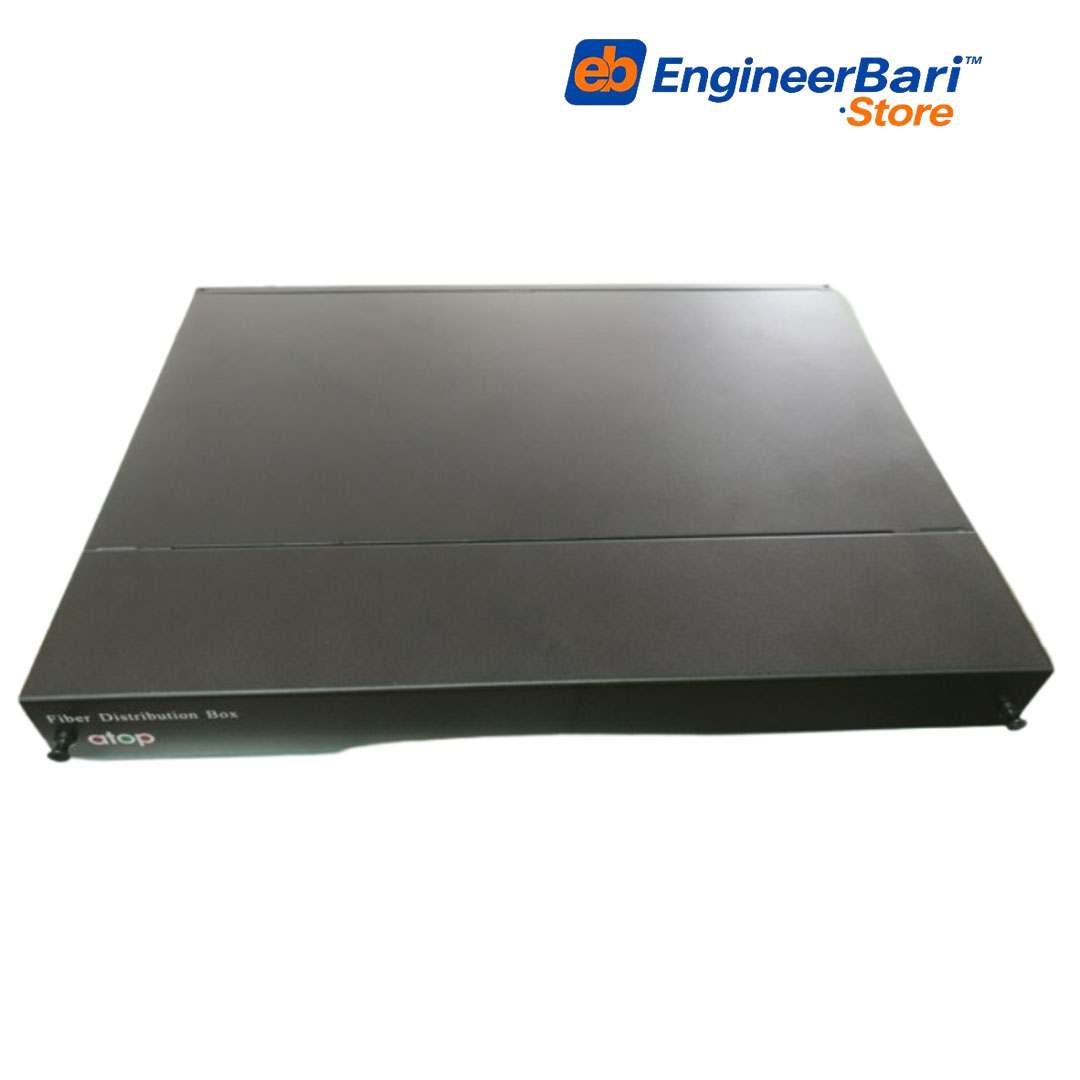

ATOP® 24 Port Fiber Optic Patch Panel -SC (Rack Mount)
Latest Price
Call for Latest Price
Get best price & special offers
Brand: ATOP®
Code: EB-20260118
SKU: SKU1783318984
Stock: 24 in stock
Product Description
The ATOP® 24 Port Fiber Optic Patch Panel is a high-quality rack-mounted Optical Distribution Frame (ODF) designed for efficient fiber optic cable management, termination, splicing, and distribution in telecommunications and networking applications.

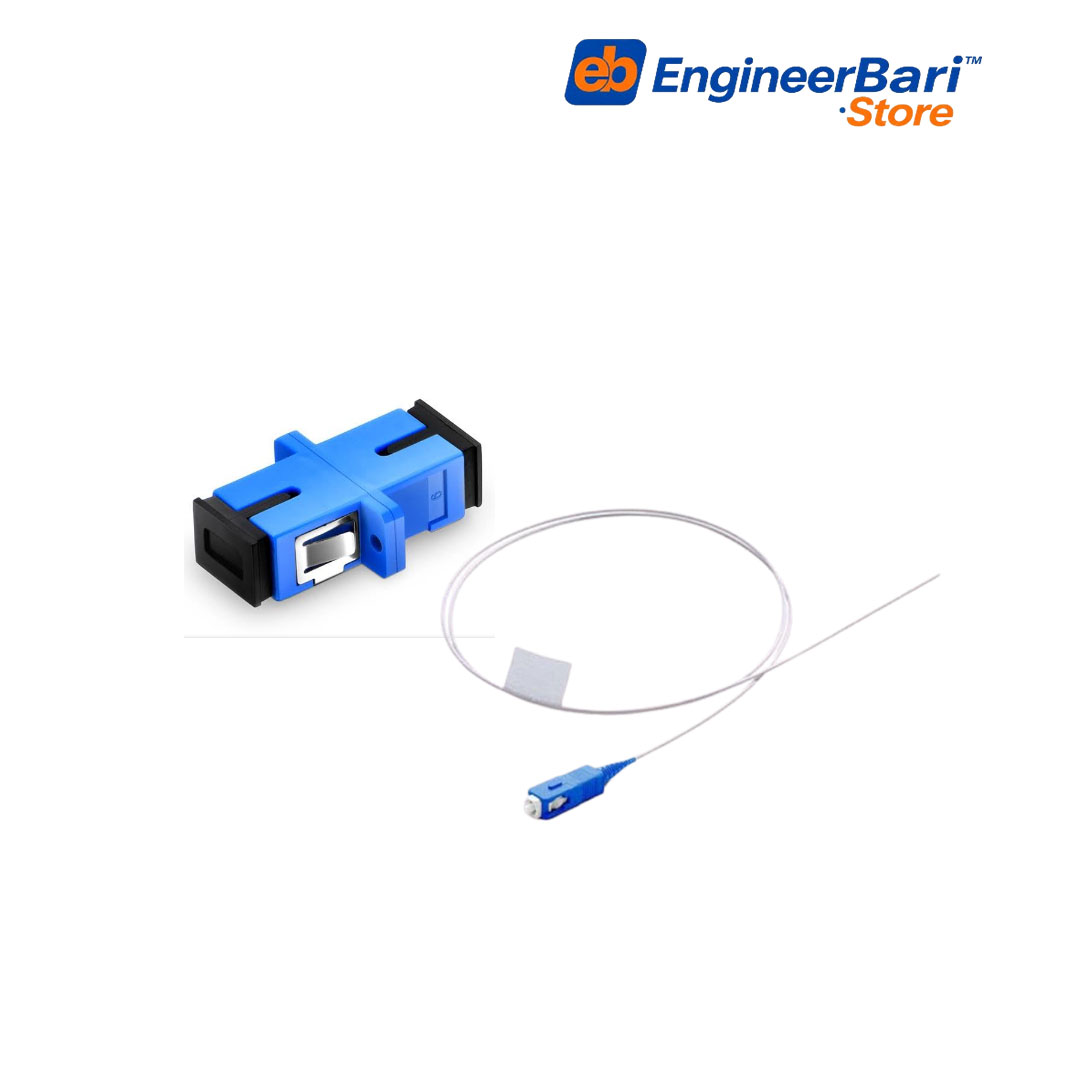

This loaded patch panel comes factory-equipped with 24 SC Single Mode (SM) Simplex Adapters and 24 SC Single Mode Simplex 1.2 Meter Pigtails (900µm cable), allowing quick installation while reducing field termination time.
Manufactured from heavy-duty powder-coated cold-rolled steel, the panel provides excellent mechanical protection for fiber splices and connectors while ensuring organized cable routing and easy maintenance. It is suitable for FTTH networks, data centers, enterprise LANs, telecom exchanges, ISP networks, industrial communication systems, and optical backbone infrastructures.
Designed according to international telecommunications standards, the ATOP® 24 Port Fiber Optic Patch Panel delivers reliable performance, low insertion loss, and long service life.
Key Features
- Factory loaded with 24 SC Single Mode Adapters
- Includes 24 SC Single Mode Simplex 1.2m Pigtails
- Supports efficient fiber termination and splicing
- Standard 19-inch 1U rack mount design
- Heavy-duty powder-coated steel construction
- Low insertion loss and high return loss
- Ceramic sleeve adapters for precise alignment
- Excellent cable management and protection
- Easy installation and maintenance
- Suitable for indoor fiber distribution
- Long service life
- RoHS and IEC compliant
Applications
- FTTH (Fiber to the Home)
- Data Centers
- Telecommunication Networks
- Optical Distribution Frames (ODF)
- Enterprise LAN Networks
- Internet Service Providers (ISP)
- Fiber Backbone Networks
- Industrial Ethernet Networks
- CCTV Fiber Communication
- Government & Campus Networks

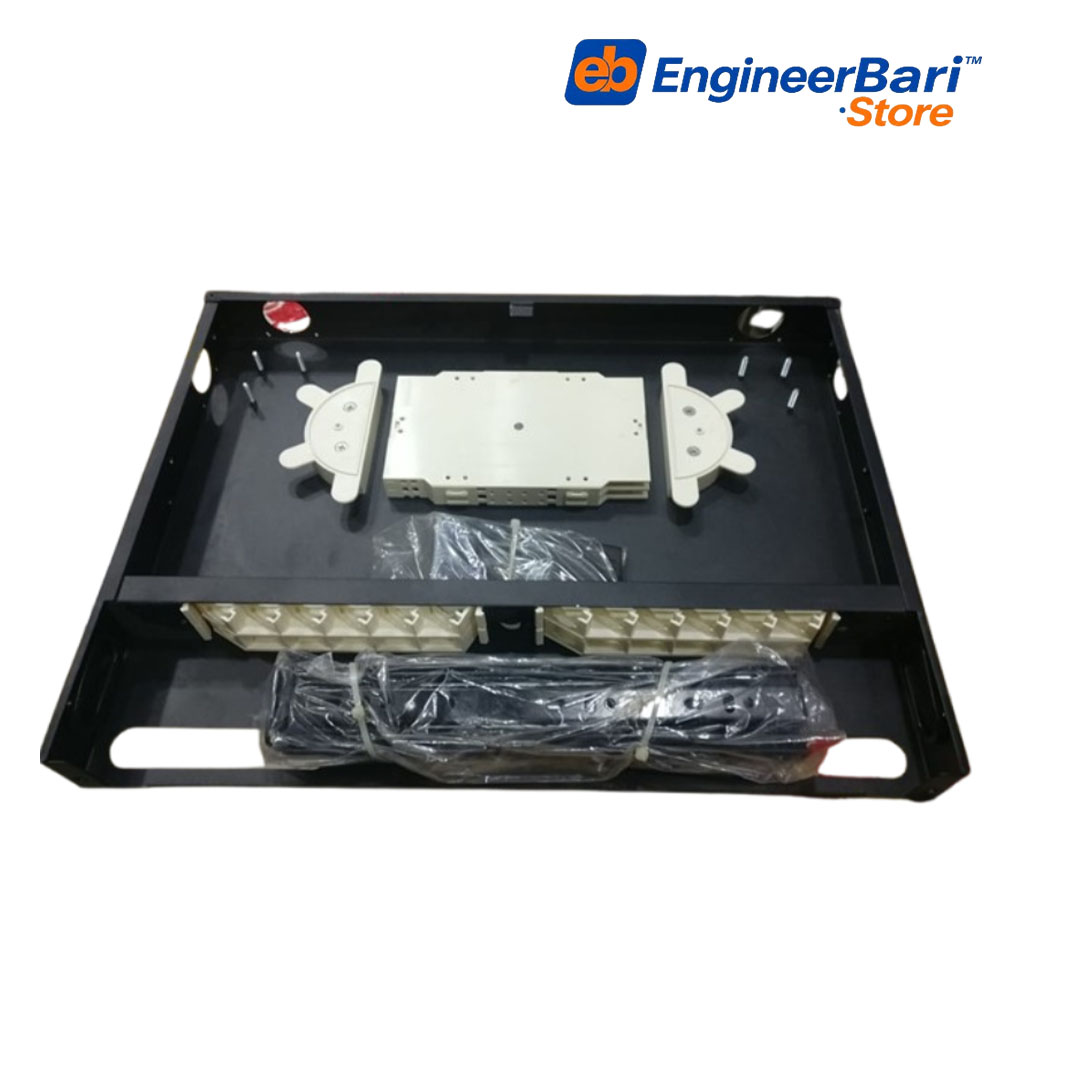

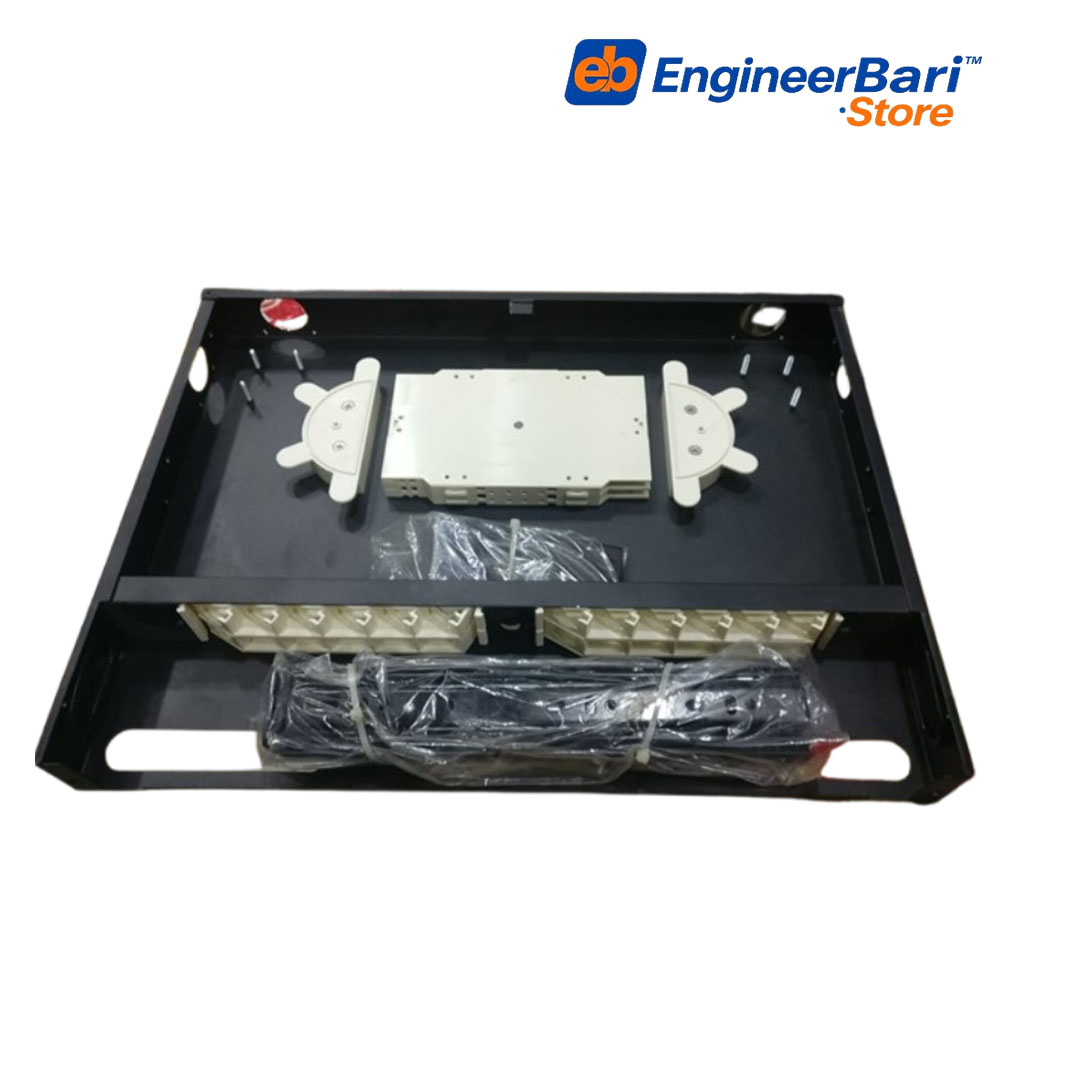

Package Includes
- 1 × 24 Port Rack Mount Fiber Optic Patch Panel
- 24 × SC Single Mode Simplex Adapters
- 24 × SC Single Mode Simplex 1.2m Pigtails (900µm)
- Splice Tray
- Cable Management Accessories
- Cable Glands
- Mounting Screws & Hardware
- Installation Manual
Technical Specifications
| Product Name | 24 Port Fiber Optic Patch Panel Loaded with SC Single Mode Adapters & Pigtails |
|---|---|
| Brand | ATOP® |
| Model | - |
| Type | Rack Mount Fiber Optic Patch Panel (Loaded) |
| Panel Capacity | 24 Ports |
| Adapter Type | SC Single Mode (Simplex) |
| Number of Adapters | 24 PCS |
| Adapter Material | Zirconia Ceramic Sleeve |
| Adapter Color | Blue |
| Pigtail Type | SC Single Mode Simplex |
| Number of Pigtails | 24 PCS |
| Pigtail Length | 1.2 Meter |
| Fiber Type | OS2 9/125µm Single Mode |
| Cable Diameter | 900µm Tight Buffered |
| Connector Polish | UPC |
| Connector Type | SC/UPC |
| Housing Material | Cold Rolled Steel |
| Surface Finish | Powder Coated |
| Mounting Type | 19-inch Rack Mount |
| Rack Size | 1U |
| Cable Entry | Rear Entry |
| Color | Black |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | Up to 95% (Non-condensing) |
| Compliance | IEC, TIA/EIA, RoHS |
| Country Of Origin | China |
| Applications | FTTH Networks, Data Centers, Telecom Networks, ODF Systems, Enterprise LAN, ISP Networks, Fiber Backbone, Industrial Communication Systems |
No operational manual available.
