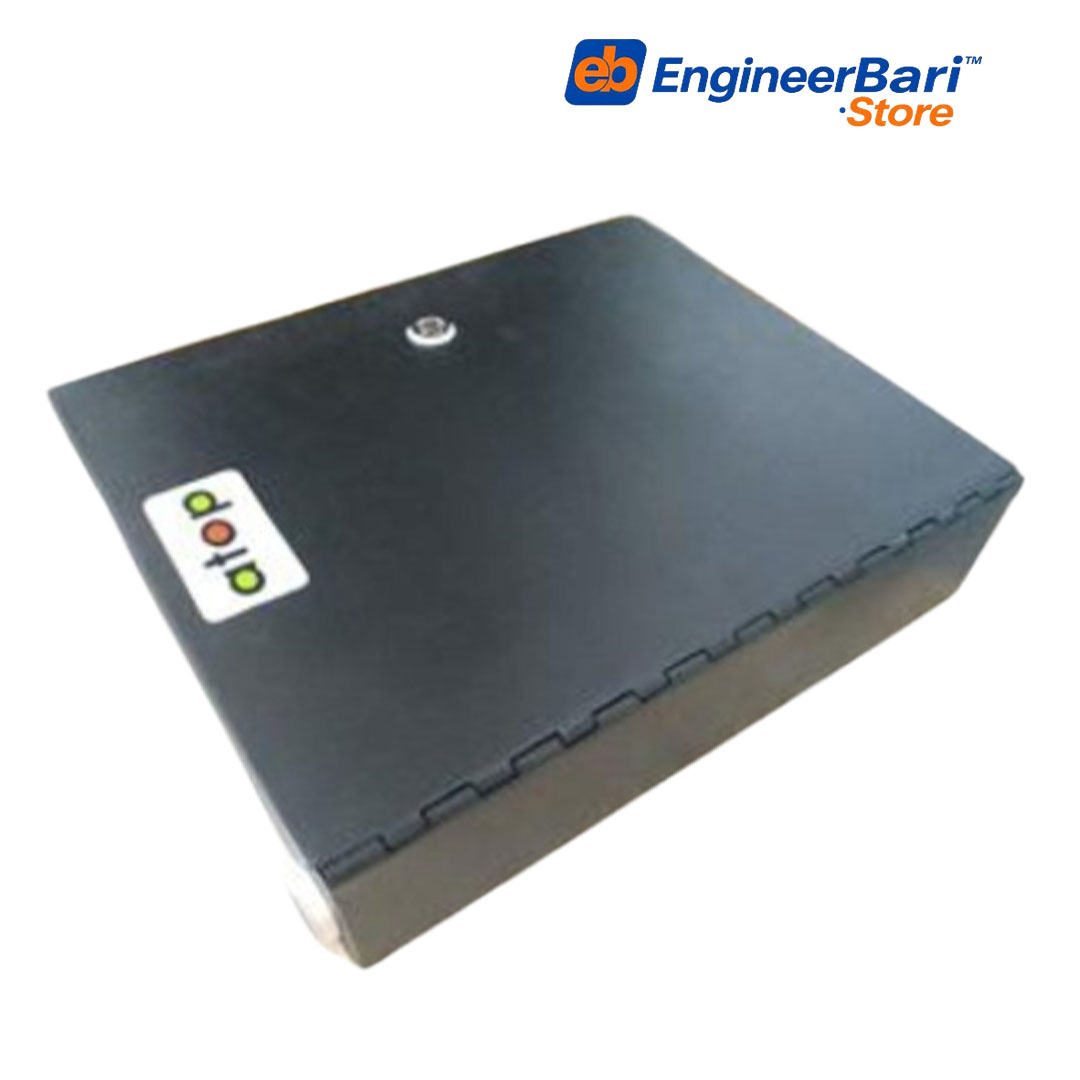

ATOP® 48 Port Wall Mount Fiber Optic Patch Panel
Latest Price
Call for Latest Price
Get best price & special offers
Brand: ATOP®
Code: EB-20260120
SKU: SKU1783418124
Stock: Out of stock
Product Description
The ATOP® 48 Port Wall Mount Fiber Optic Patch Panel is a high-performance Optical Distribution Frame (ODF) designed for fiber optic cable termination, splicing, distribution, and cable management in indoor communication networks. This factory-loaded wall mount patch panel is equipped with 48 FC Single Mode (SM) Simplex Adapters and 48 FC Single Mode Simplex 1.2 Meter Pigtails (900µm tight buffered cable), allowing fast installation while minimizing field assembly time.
Constructed from heavy-duty powder-coated cold-rolled steel, the enclosure offers excellent protection for fiber optic splices, adapters, and cables. The FC threaded connector interface provides a secure and vibration-resistant connection, making it suitable for critical telecommunications, industrial communication, and enterprise networking applications.
Its compact wall-mounted design makes it ideal where rack space is limited while still providing excellent cable organization and easy maintenance. Designed according to international standards, the ATOP® 48 Port Wall Mount Fiber Optic Patch Panel ensures reliable optical performance and long service life.
Key Features
- Factory loaded with 48 FC Single Mode Simplex Adapters
- Includes 48 FC Single Mode Simplex 1.2 Meter Pigtails (900µm)
- Secure threaded FC connectors for stable optical connections
- High-quality zirconia ceramic sleeve adapters
- Wall mount design for space-saving installation
- Heavy-duty powder-coated steel enclosure

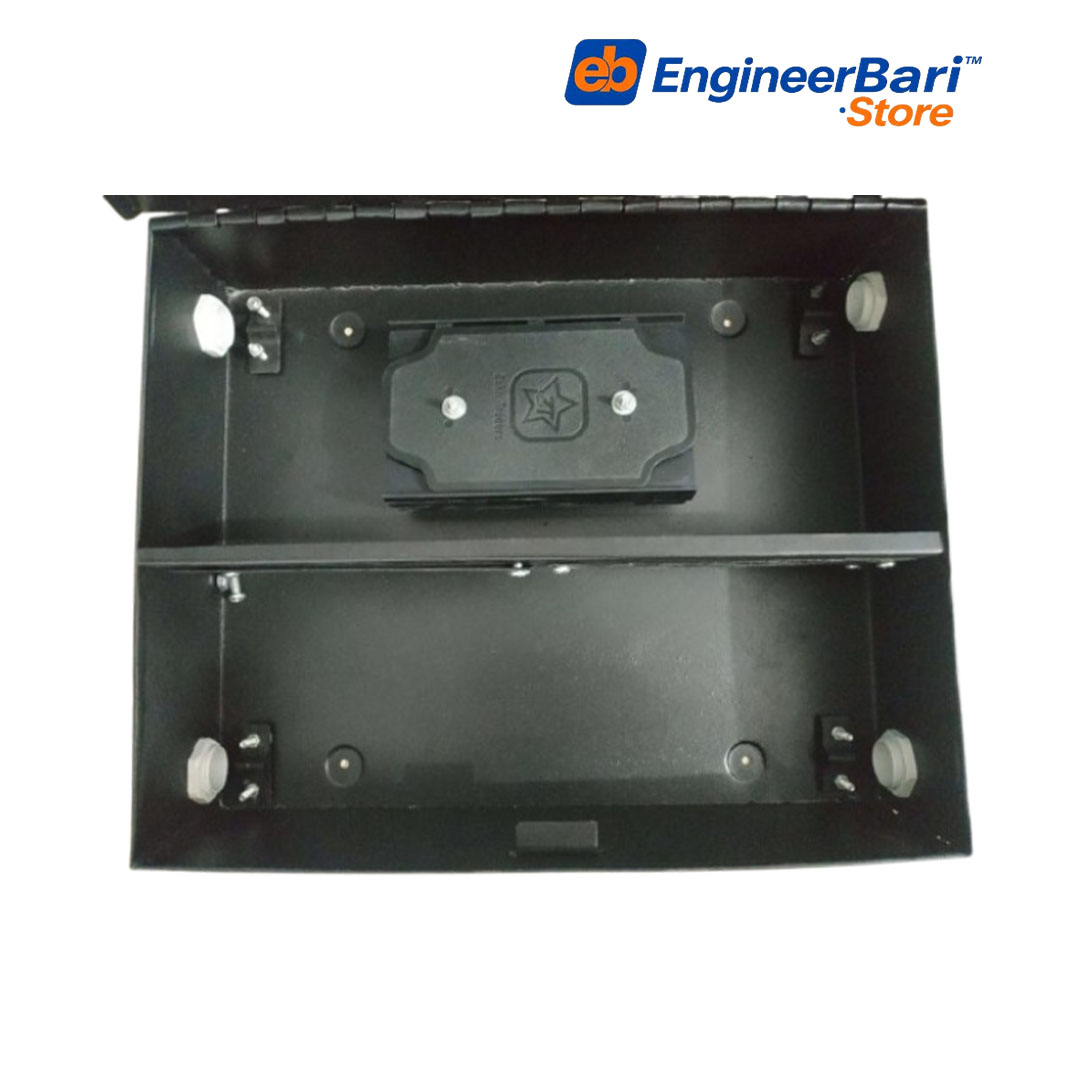

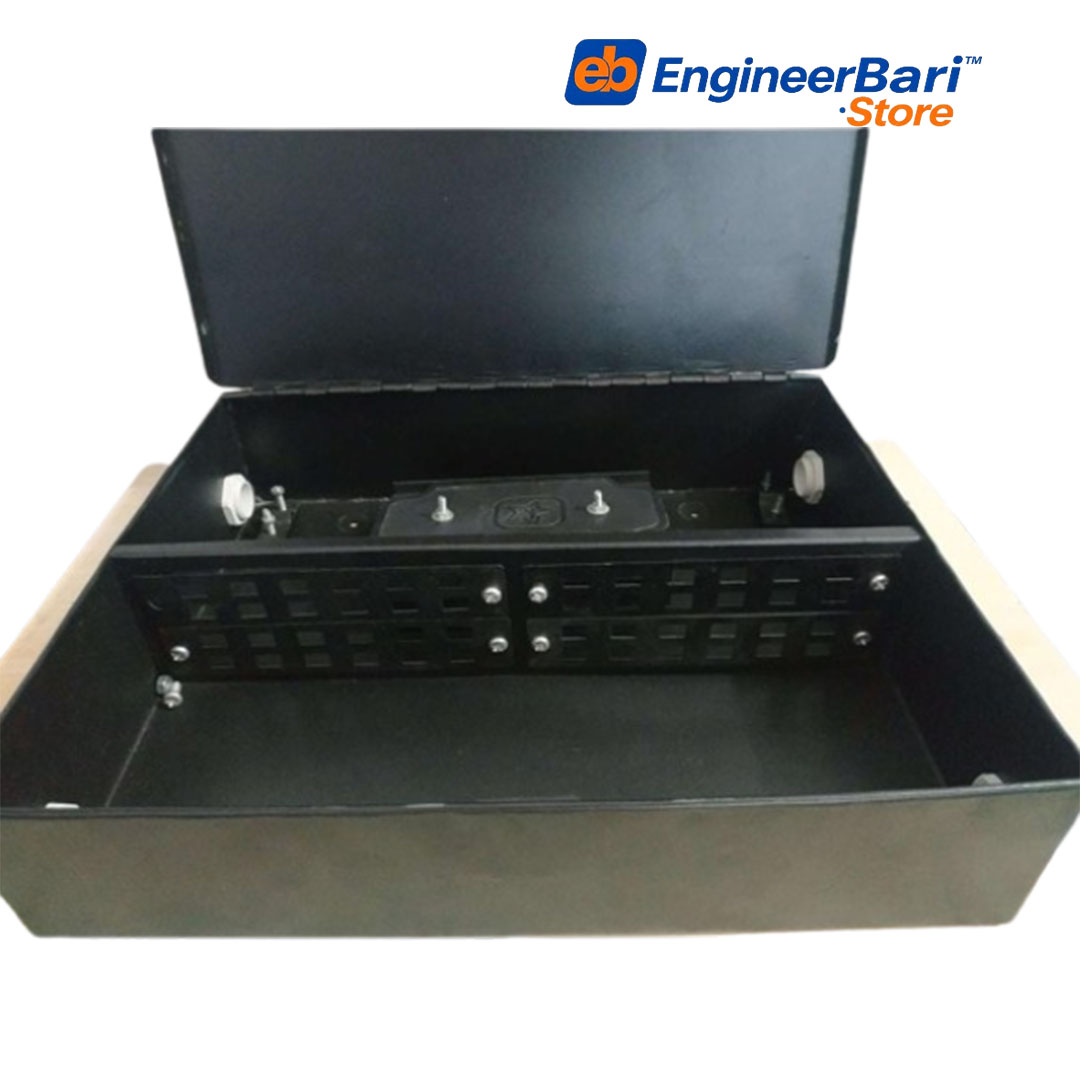

- Integrated splice tray for organized fiber management
- Top and bottom cable entry for flexible routing
- Low insertion loss and high return loss
- Excellent cable protection and bend radius management
- Easy installation, inspection, and maintenance
- Long service life with corrosion-resistant construction
- Suitable for indoor fiber distribution systems
- IEC, TIA/EIA, and RoHS compliant
Applications
- FTTH (Fiber to the Home) Networks
- Fiber Optic Distribution Frames (ODF)
- Telecommunication Networks
- Data Centers
- Enterprise LAN Networks
- ISP Infrastructure
- Industrial Communication Systems
- Optical Backbone Networks
- CCTV Fiber Transmission Systems
- Government & Campus Networks
- Smart Building Infrastructure
- Broadband Access Networks
Technical Specifications
| Product Name | 48 Port Wall Mount Fiber Optic Patch Panel Loaded with FC Single Mode Adapters & Pigtails |
|---|---|
| Brand | ATOP® |
| Model | - |
| Type | Wall Mount Fiber Optic Patch Panel (Loaded) |
| Panel Capacity | 48 Fiber Cores |
| Adapter Type | FC Single Mode (Simplex) |
| Number of Adapters | 48 PCS |
| Adapter Material | Zirconia Ceramic Sleeve |
| Adapter Color | Blue |
| Pigtail Type | FC Single Mode Simplex |
| Number of Pigtails | 48 PCS |
| Pigtail Length | 1.2 Meter |
| Fiber Type | OS2 9/125µm Single Mode |
| Cable Diameter | 900µm Tight Buffered |
| Connector Polish | UPC |
| Connector Type | FC/UPC |
| Housing Material | Cold Rolled Steel |
| Surface Finish | Powder Coated |
| Mounting Type | Wall Mount |
| Cable Entry | Top & Bottom Entry |
| Splice Tray Capacity | 48 Fibers |
| Color | Black |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | Up to 95% (Non-condensing) |
| Compliance | IEC, TIA/EIA, RoHS |
| Country Of Origin | China |
| Applications | FTTH Networks, Data Centers, Telecom Networks, ODF Systems, Enterprise LAN, ISP Networks, Fiber Backbone, Industrial Communication Systems |
No operational manual available.
